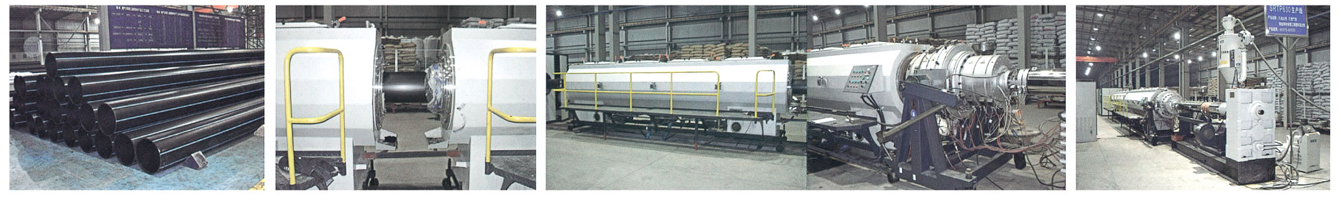

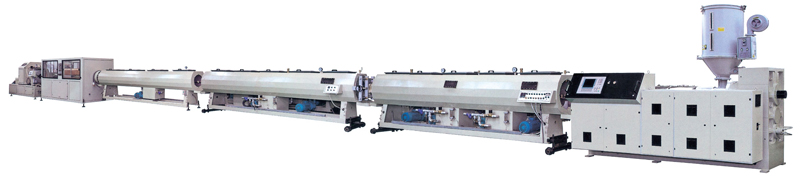

PE PIPE PRODUCTION LINE
Characteristics and applications：
The screw of the extruder equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head of for HDPE(PP,ABS)large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of cavity,and stable production.
Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS)material,which can fit for the requirement of HDPE(PP,ABS).And the design can ensure the stability of diamenter and roundness when producing the pipe with thick wall.Special design vacuum sizing tank can ensure the stability of size and roundness,Speed controllers are used in extruder,haul-off to offer stability and precision.
The whole line adopts PLC control system and large liquid crystal screen,which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.
| Model | Pipe diameter (mm) | Vacuum calibration tank | 冷却箱 | 牵引机 | 切割机 | ||||
| Vacuum pump | Water pump | Length(mm) | 水泵 | 长度mm | 履带数 | 电机 | 环形切割 | ||
| GF-63 | Φ16-Φ63 | 2.2KW*2 | 2.2KW*2 | 6000 | 3.0KW | 6000 | 2 | 1.5KW*2 | |
| GF-110 | Φ63-Φ110 | 4KW*1 | 3.0KW*2 | 6000 | 3.0KW | 6000 | 2 | 2.2KW*2 | |
| GF-160 | Φ63-Φ160 | 4KW*1 | 3.0KW*2 | 6000 | 4.0KW | 6000 | 3 | 1.1KW*3 | |
| GF-250 | Φ63-Φ250 | 4KW*2 | 5.5KW*2 | 6000 | 5.5KW | 6000 | 4 | 1.1KW*4 | |
| GF-450 | Φ110-Φ450 | 5.5KW*1 7.5KW*1 | 7.5KW*2 | 6000 | 5.5KW | 6000 | 6 | 1.1KW*6 | |
| GF-630 | Φ315-Φ630 | 7.5KW*2 | 7.5KW*2 | 10000 | 7.5KW | 6000 | 6 | 1.1KW*6 | |
| GF-800 | Φ355-Φ800 | 5.5KW*2 7.5KW*2 | 5.5KW*2 7.5KW*2 | 1500 10500 | 5.5KW*2 | 6000 | 8 | 1.1KW*8 | |
| GF-1200 | Φ630-Φ1200 | 5.5KW*2 5.5KW*4 | 7.5KW*2 7.5KW*4 | 1500 10500 | 7.5KW*2 | 6000 | 10 | 1.1KW*10 | |

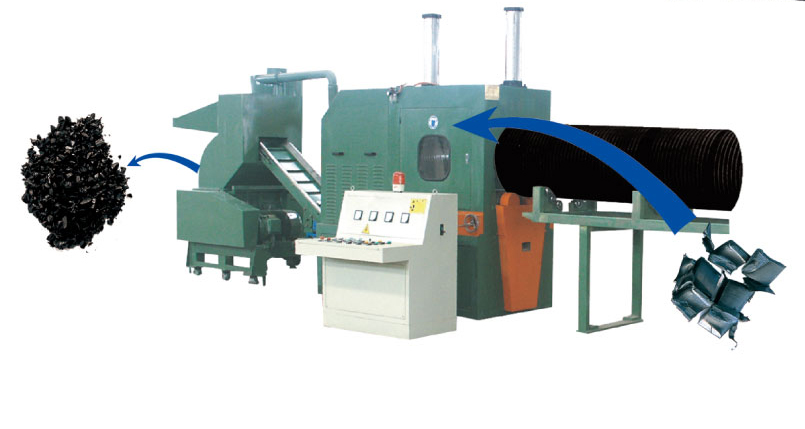

 | PE管材破碎机 |
