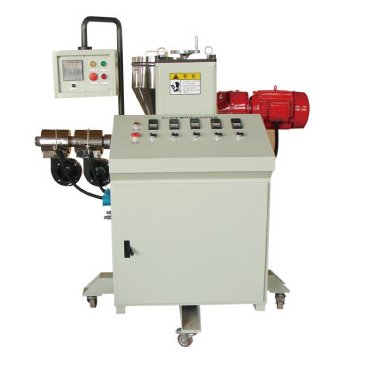

SJ series single screw plastic extruder
Features and application：
This set is advanced in design,high in output,good in plasticization and low in energy consumption.The involute gear driving is characterized by low noise,stable working,big bearing capacity and long service life.This set can be used for extruding thermo-plastics like soft or hard polyvinyl chlorid(PVC) and polystyrene(PE).Coordinated with the appropriate auxiliary maachine |  |
Technical parameter：
| Model | 长径比 (L/D) | Output(PE)(kg/h) | Speed(r/imin) | Drive power(kw) | Center Height(mm) |
| SJ-25 | 25/1 | 5 | 20-120 | 2.2 | 1000 |
| SJ-30 | 25/1 | 10 | 20-180 | 5.5 | 1000 |
| SJ-45 | 25-33/1 | 50-80 | 20-150 | 7.5-37 | 1000 |
| SJ-65 | 25-33/1 | 60-250 | 20-150 | 22-90 | 1000 |
| SJ-75 | 25-33/1 | 150-300 | 20-150 | 55-110 | 1100 |
| SJ-90 | 25-33/1 | 180-550 | 20-110 | 37-185 | 1000-1100 |
| SJ-120 | 25-33/1 | 320-800 | 20-90 | 75-280 | 1000-1250 |
| SJ-150 | 25-33/1 | 400-1200 | 20-75 | 90-355 | 1000-1300 |
